[ACM-302]Altera MAXII T144 CPLD board

Print

Altera MAX II T144 CPLD board

ft-max2

Overview

ACM-302 is Altera's Hi-performance CPLD MAXII board. It's compact and very simple. 3.3V single power supply operation.

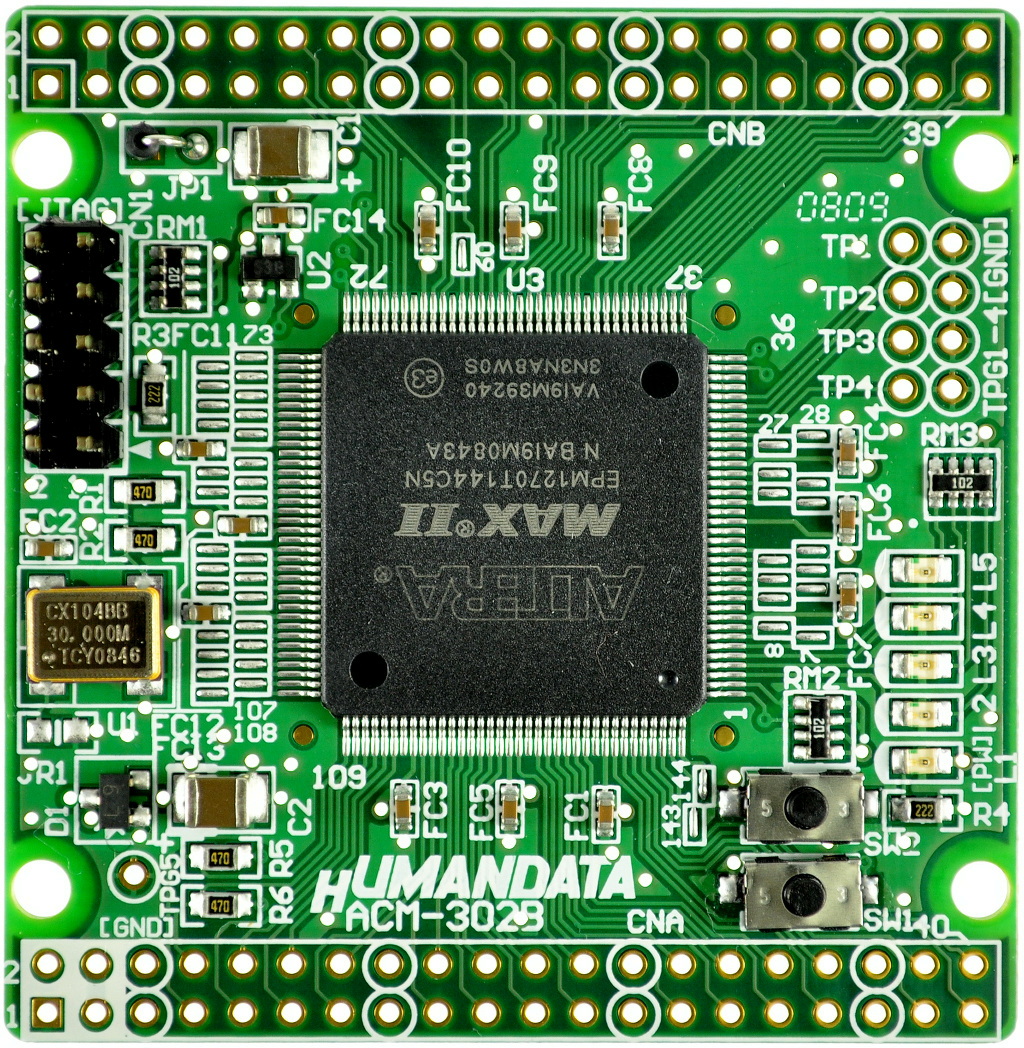

MAX2 CPLD BOARD ACM-302
Click to Zoom

Block Diagram

Block Diagram ACM-302

Click to Zoom

Specifications

  • ALTERA EPM1270T144C5N(MAXII CPLD 1270 macro cel)
    Feature EPM1270T144C5N
    Logic Elements 1270
    Maximum user I/O pins(Device) 116
    Maximum user I/O pins(Board) 56

    This table is for reference. Please refer to official data-sheets for certain information.

  • 56 I/O PAD 100 mil (2.54 mm) grid
  • 30 MHz Oscillator(50 ppm)or External
  • Two User Push-Button Switches
  • Four User LEDs
  • Power-on Reset IC
  • JTAG port(10 pin Header) for ByteBlaster[MV/II] or USB Blaster
  • 3.3 V single power supply operation
  • High quality four layers PCB.(Immersion gold)
  • Compact size 2.087" x 2.126" (53 x 54 mm)
  • Tested all I/O
  • RoHS compliance
  • MADE IN JAPAN

Package Contents

Item Image Quantity
CPLD Board(ACM-302-1270) MAX2 CPLD BOARD ACM-302 1
Pin Headers 40pinhead 2

There is no paper document such as user's manual and circuit schematic in the package.
Please download those documents from the link in the documentation section below.

Price and Add-ons

Description Model
(order code)
CPLD List price
jpy (JPY)
Stock Status
MAXII T144 CPLD board ACM-302-1270 EPM1270T144C5N
Universal board
with 3.3V10A DC/DC POWR SUPPLY
ZKB-054 -
Universal board for ACM/XCM-0 series (Type2) ZKB-105 -

[]

Last Updated on Wednesday, 25 April 2012
