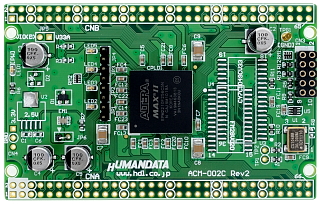

Altera MAX II F256 CPLD board
Overview
ACM-002 is Altera's Hi-performance CPLD MAXII board. It's compact and very simple.3.3V single power supply operation.
Block Diagram
Specifications
-
ALTERA EPM2210F256C5N(MAXII CPLD 2210 macro cel)
Feature EPM2210F256C5N Logic Elements 2210 Maximum user I/O pins(Device) 212 Maximum user I/O pins(Board) 100 This table is for reference. Please refer to official data-sheets for certain information.
- 100 I/O PAD 100 mil (2.54 mm) grid
- 30 MHz Oscillator(50 ppm)or External
- Four User LEDs
- Option-1: 2.5 V regulator IC with power on reset function
- Option-2: SRAM (Cypress CY7C1049CV33-20VC)
- Power-on Reset IC
- JTAG port(10 pin Header) for ByteBlaster[MV/II] or USB Blaster
- 3.3 V single power supply operation
- High quality six layers PCB.(Immersion gold)
- Credit-Card-Size 3.386"x 2.126" (86 x 54 mm)
- Tested all I/O
- RoHS compliance
- MADE IN JAPAN
Package Contents
| Item | Image | Quantity |
|---|---|---|
| CPLD Board(ACM-002-***) |
 |
1 |
| Pin Headers |
 |
2 |
| Sockets |
 |
2 |
There is no paper document such as user's manual and circuit schematic in the package.
Please download those documents from the link in the documentation section below.
Documentation
Price and Add-ons
| Description |
Model (order code) |
CPLD |
List price (JPY) |
Stock Status |
|---|---|---|---|---|
| MAXII F256 CPLD board | ACM-002-2210 | EPM2210F256C5N | ||
|
Universal board with 3.3V10A DC/DC POWR SUPPLY |
ZKB-054 | - | ||
| Universal board for ACM/XCM-0 series （Type2) | ZKB-105 | - |
[]
