ACM-001 is Altera's Hi-performance CPLD MAX-II board. It's compact and very simple.
Features
Contents
- ALTERA EPM1270T144C5(MAX-II CPLD 1270 macro cel)
- 100 I/O PAD 100mil(2.54mm) grid
- 30MHz Osclilator( 50ppm)
- Power On Reset IC
- JTAG port( 10pin Header) for ByteBlaster or USB Blaster
- 3.3V single supply
- 4 LED or Input port(selectable)
- Just Credit-Card-Size 2.126" x 3.307" ( 54 x 84 mm)
- Tested all i/o
- High quality four layer PCB.(Immersion gold)
- RoHS compliance
- MADE IN JAPAN
Product Includes
- CPLD Board(ACM-001-1270)
- Pin Headers

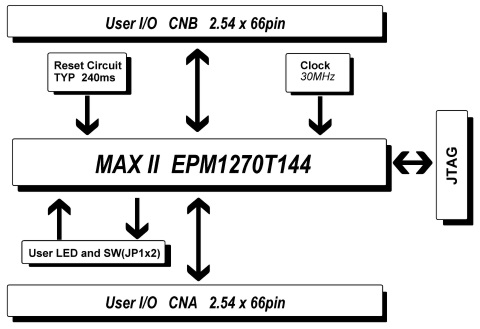

Block Diagram
