[ACM-105]Altera CycloneIII F484 FPGA board

Print

Altera Cyclone III F484 FPGA board

ft-cyclone3

Overview

ACM-105 is Altera's Hi-performance FPGA CycloneIII board. It's compact and very simple. 3.3V single power supply operation.

Cyclone FPGA Board ACM-105
Click to Zoom

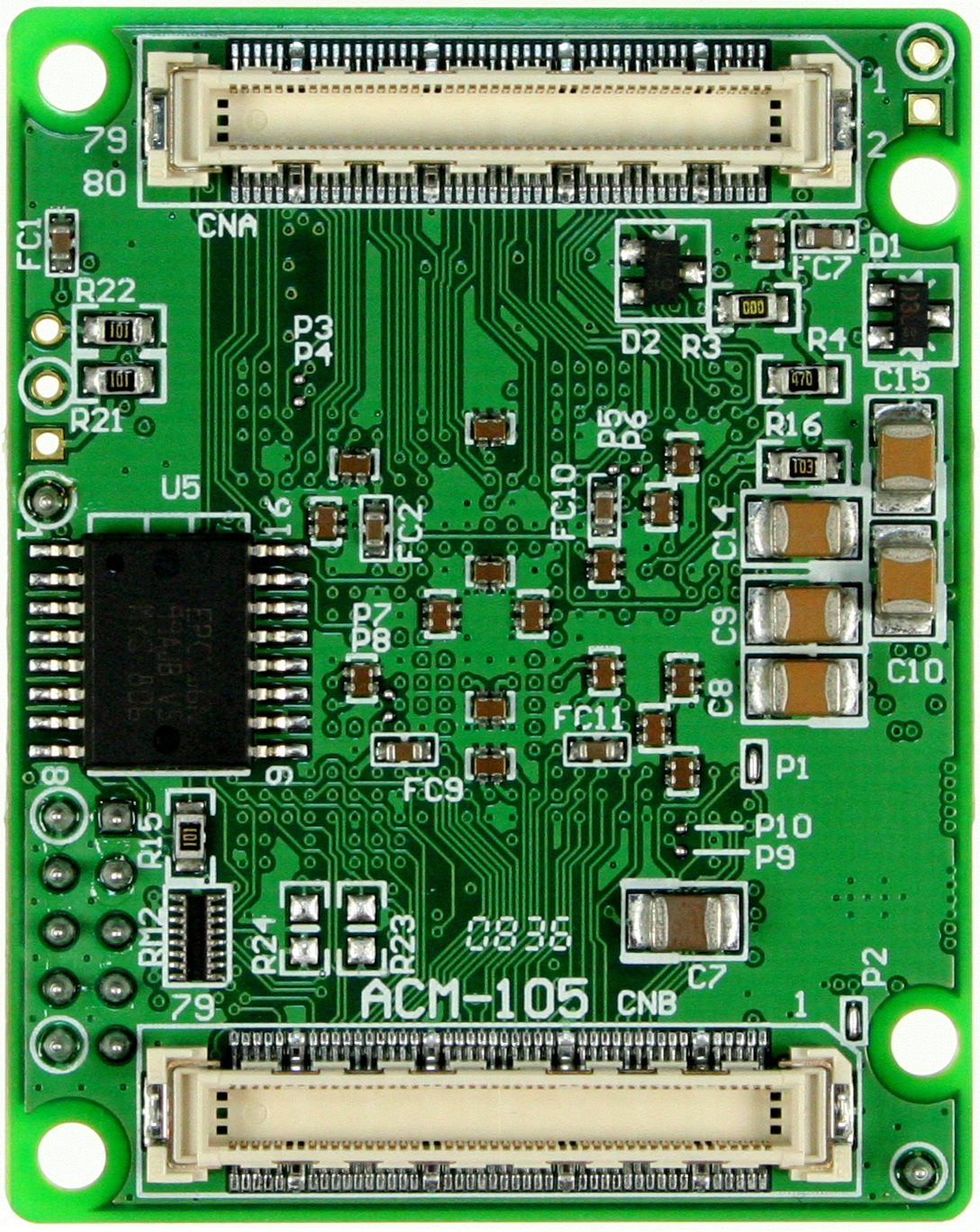

Cyclone FPGA Board ACM-105
Click to Zoom

Block Diagram

Block Diagram ACM-105

Click to Zoom

Specifications

  • ALTERA EP3C16F484C8N(CycloneIII FPGA 16K LE) or
    ALTERA EP3C55F484C8N(CycloneIII FPGA 55K LE)
    Feature EP3C16F484C8N EP3C55F484C8N
    Logic Elements 15408 55856
    PLLs 4 4
    Maximum user I/O pins(Device) 346 377
    Maximum user I/O pins(Board) 128 128
    M9K RAM blocks 56 260
    Memory(kbits) 516,096 2,396,160
    Multipliers 56 156

    This table is for reference. Please refer to official data-sheets for certain information.

  • Configuration Device (Altera EPCS16SI16N)
  • 128 I/O two 80 pin HIROSE connectors (exist dedicate input pin for external CLOCK inputs)
  • Separable VCCIO
  • 30 MHz Oscillator(50 ppm)or External
  • One User Push-Button Switch
  • One User LED
  • Two Status LED (Power,Done)
  • Power-on Reset IC
  • JTAG port (10 pin socket) for ByteBlaster[MV/II] or USB Blaster
  • 3.3 V single power supply operation with on-board 1.2 V/2.5 V regulators
  • High quality six layers PCB. (Immersion gold)
  • Compact size 1.693" x 2.126" (43 x 54 mm)
  • Tested all I/O
  • RoHS compliance
  • MADE IN JAPAN

Package Contents

Item Image Quantity
FPGA board(ACM-105-***) Cyclone FPGA Board ACM-105 1
Sockets(HIROSE 80P) HIROSE80 2

There is no paper document such as user's manual and circuit schematic in the package.
Please download those documents from the link in the documentation section below.

Price and Add-ons

Description Model
(order code)
FPGA List price
jpy (JPY)
Stock Status
CycloneIII F484 FPGA board ACM-105-16C8 EP3C16F484C8N
CycloneIII F484 FPGA board ACM-105-55C8 EP3C55F484C8N
Pitch converter for ACM/XCM-1 series ZKB-030KIT -
Universal board for ACM/XCM-1 series ZKB-052 -
Universal board for ACM/XCM-1 series (Type2) ZKB-103 -
Pitch Conversion Board ACM/XCM-2 series ZKB-041KIT -

[]

Last Updated on Saturday, 22 June 2013
