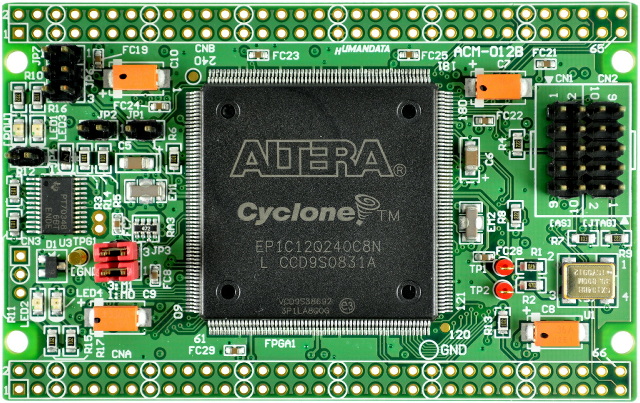

Altera Cyclone Q240 FPGA board(5 V I/O support)
Overview
ACM-012 is Altera's Hi-performance FPGA Cyclone board.It's compact and very simple. 5 V single power supply operation.
ACM-012 is support 5V Level I/O.
Block Diagram
Specifications
-
ALTERA EP1C6Q240C8N(Cyclone FPGA 6K LE) or
ALTERA EP1C12Q240C8N(Cyclone FPGA 12K LE)
Feature EP1C6Q240C8N EP1C12Q240C8N Logic Elements 5980 12060 PLLs 2 2 Maximum user I/O pins(Device) 173 185 Maximum user I/O pins(Board) 100 100 M4K RAM blocks 20 52 RAM Bits 92,160 239,616 This table is for reference. Please refer to official data-sheets for certain information.
- Configuration Device(Altera EPCS4SI8N)
- 100 I/O PAD 100 mil (2.54 mm) grid

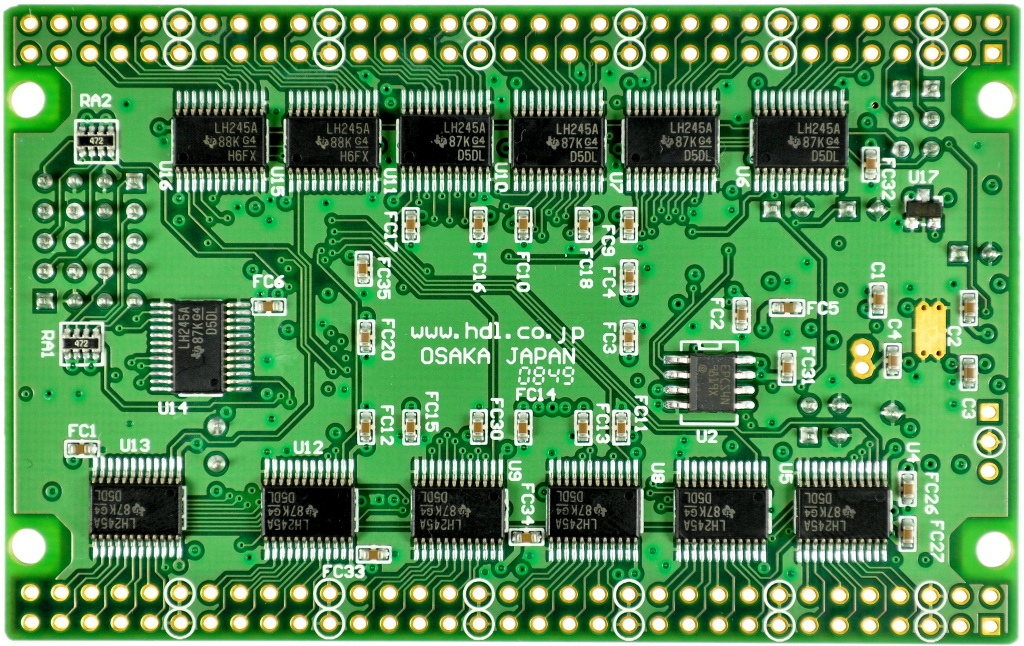

- 5 V I/O support(74LVCC3245)
- 30 MHz Oscillator(50 ppm)or External
- Two User LEDs
- One Status LED(Power)
- Controllable level converter data direction pins
- Power-on Reset IC
- JTAG port(10 pin Header) for ByteBlaster[MV/II] or USB Blaster
- AS mode port(10 pin Header) for ByteBlasterII or USB Blaster
- 5 V single power supply operation with on-board 3.3 V and 1.5 V regulators
- High quality six layers PCB.(Immersion gold)
- Credit-Card-Size 3.386"x 2.126" (86 x 54 mm)
- Tested all I/O
- RoHS compliance
- MADE IN JAPAN
Package Contents
| Item | Image | Quantity |
|---|---|---|
| FPGA Board(ACM-012-***) |
 |
1 |
| Pin Headers |
 |
2 |
| Sockets |
 |
2 |
There is no paper document such as user's manual and circuit schematic in the package.
Please download those documents from the link in the documentation section below.
Documentation
Price and Add-ons
| Description |
Model (order code) |
FPGA |
List price (JPY)
|
|---|---|---|---|
| Cyclone Q240 FPGA board | ACM-012-6 | EP1C6Q240C8N | |
| Cyclone Q240 FPGA board | ACM-012-12 | EP1C12Q240C8N | |
|
Universal board with 3.3V10A DC/DC POWR SUPPLY |
ZKB-054 | - | |
| Universal board for ACM/XCM-0 series （Type2) | ZKB-105 | - |
[]
